Urban Tree Vault Supplier – Sustainable Tree Growth Meets Structural Integrity
At KHD Landscaping Engineering Soultions, we supply advanced Urban Tree Vault Systems designed to support healthy tree growth in urban environments while maintaining the structural integrity of surrounding infrastructure. Also known as structural soil vaults or soil cell systems, these modular underground solutions provide uncompacted soil volume essential for root development, stormwater management, and long-term tree health.
Why Choose Our Urban Tree Vault Systems?
Our systems are engineered to meet the demands of modern cities—balancing tree vitality with infrastructure resilience.
Key Features & Benefits:

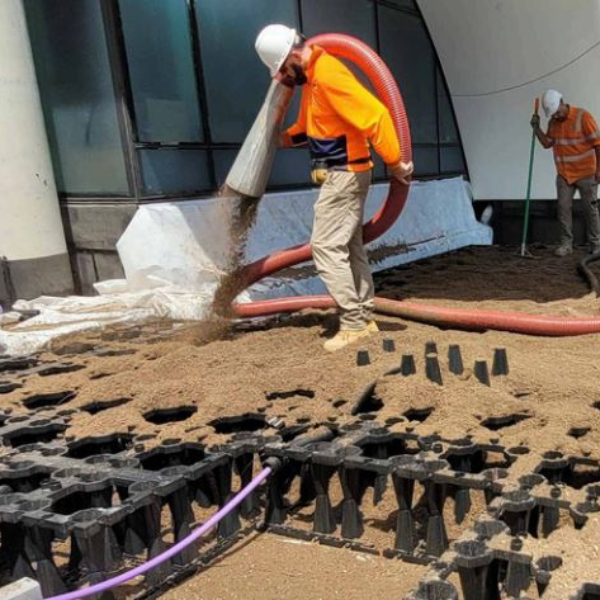

- Uncompacted Soil Volume – Promotes deep, healthy root growth in urban environments.
- Structural Support for Pavements – Replaces traditional rock and soil mixes with engineered modules.
- Infrastructure Protection – Prevents root intrusion into pipes, foundations, and pavements.
- Stormwater Management – Enhances water infiltration and reduces urban heat.
- Enhanced Tree Health & Biodiversity – Improves air quality and tree resilience.
- Modular & Flexible Design – Fits various tree pit sizes and urban layouts.
Introducing the Urban Tree Vault System

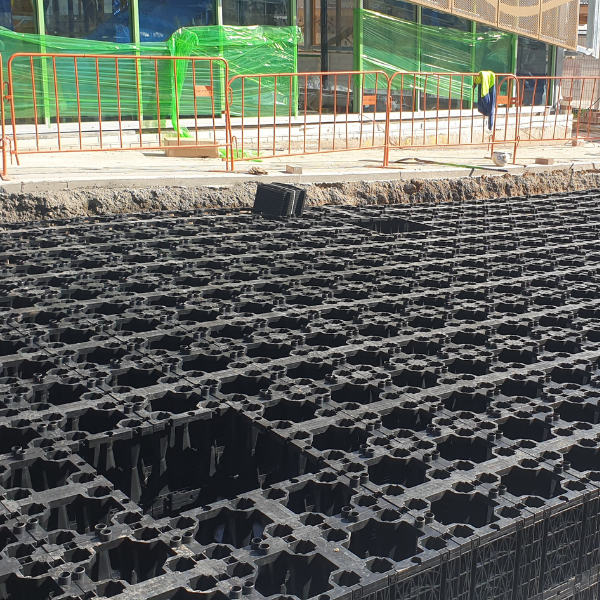

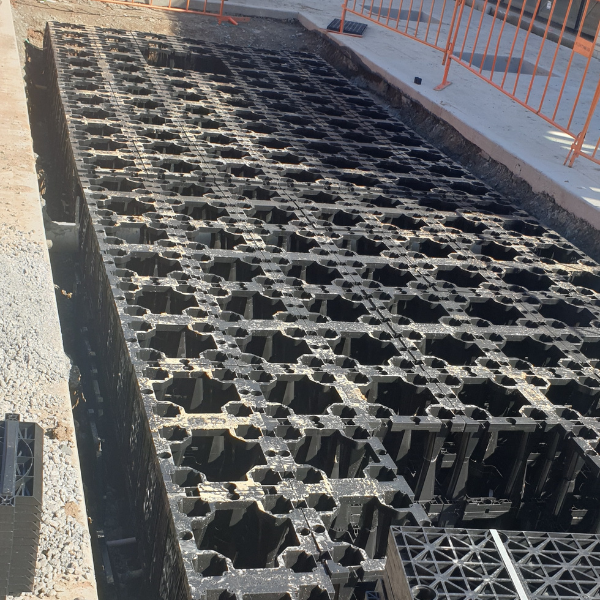

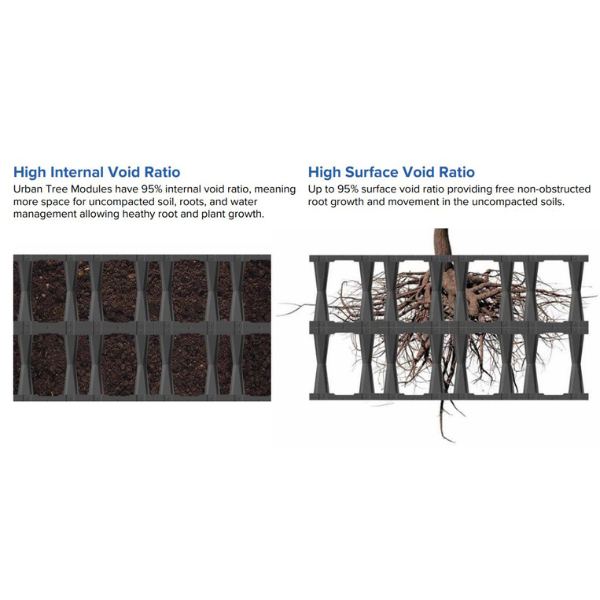

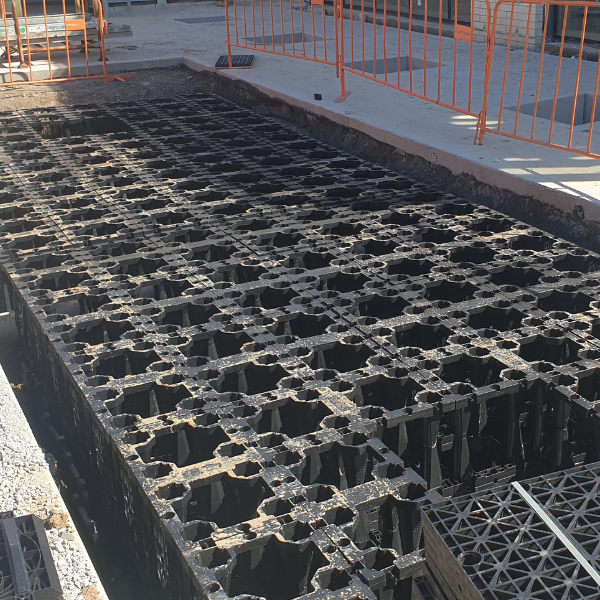

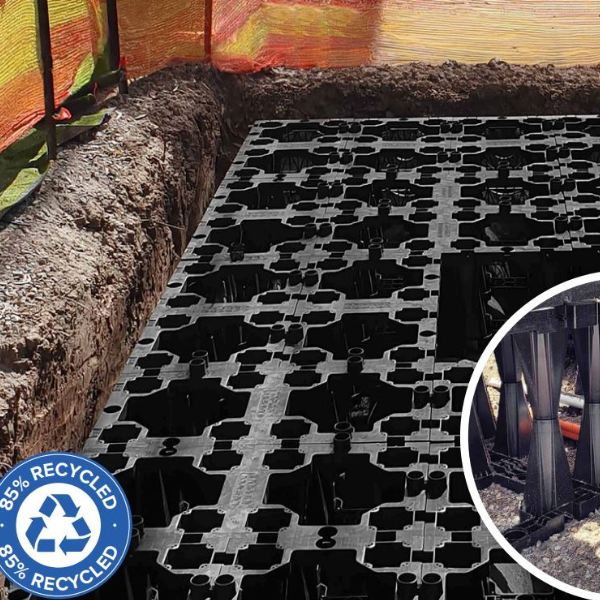

KHD Urban Tree Vault modules form a robust skeletal matrix that supports pavement loads while offering over 95% internal void volume for uncompacted soil and root growth.
- Replaces up to 80% of traditional rock volume
- Provides structural strength and optimal root zone conditions
- Supports sustainable tree growth in dense urban environments
Urban Tree Vault – Next-Generation Tree Vault Technology
Urban Tree Vault systems deliver generational benefits and help cities meet climate goals faster:
- Twice the canopy in half the time – Accelerates tree growth and carbon sequestration.
- No pavement heave or service interference – Roots grow safely without damaging infrastructure.

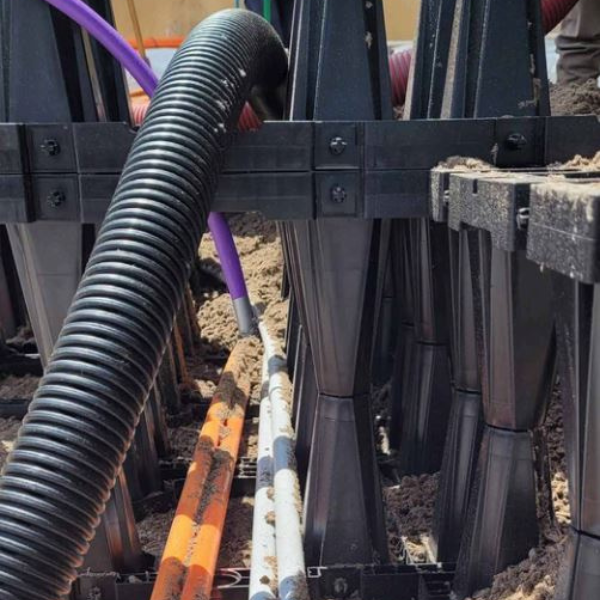

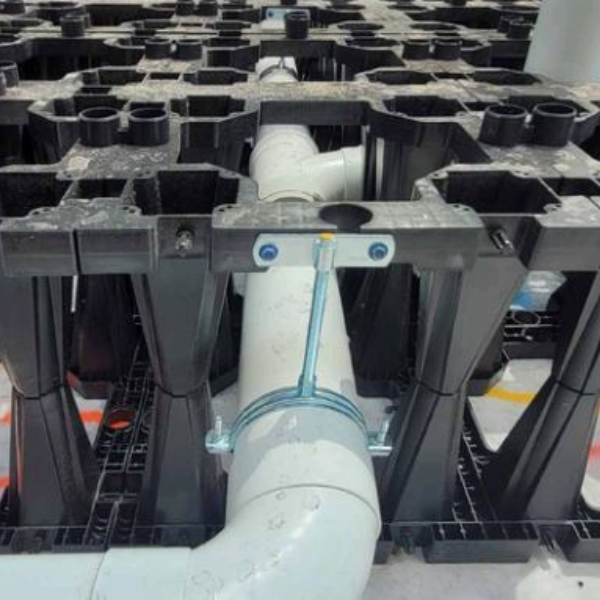

- Customizable on-site – Accommodates unexpected services without pre-cutting.
- WSUD-compliant stormwater solutions – Strataflow technology provides passive irrigation.
- Climate resilience – Trees withstand extreme weather conditions.
- Eco-friendly manufacturing – Made from 100% recycled plastic in Australia and North America.
The Problem with Structural Soil
Many cities still use structural soil, which offers limited root space and suffers from compaction. Known as the “tree coffin”, this method results in up to 80% tree failure within 10 years.
Urban Tree Vault replaces structural soil, offering:
- Structural integrity for pavements
- 93% of the soil volume trees need to thrive
- Long-term sustainability and reduced replacement costs
Technical Specifications
- 100% Recycled polypropylene
- Nominal Volume Weight: 58 kg/m³ – 25% more raw material than competitors
- Vertical Load Capacity: >705 kPa (70.50 t/sqm) H20/H25 rated
- Lateral Load Capacity: >11 t/m² – ideal for traffic areas
- Special side end plates to finish of the PERIMETER FRAME of the tree pit with over 11 t/sqm lateral load capacity, provides support and structure for geotextile and grid to rest on, in between loose filled soil within the cell structure and surrounding compacted gravel

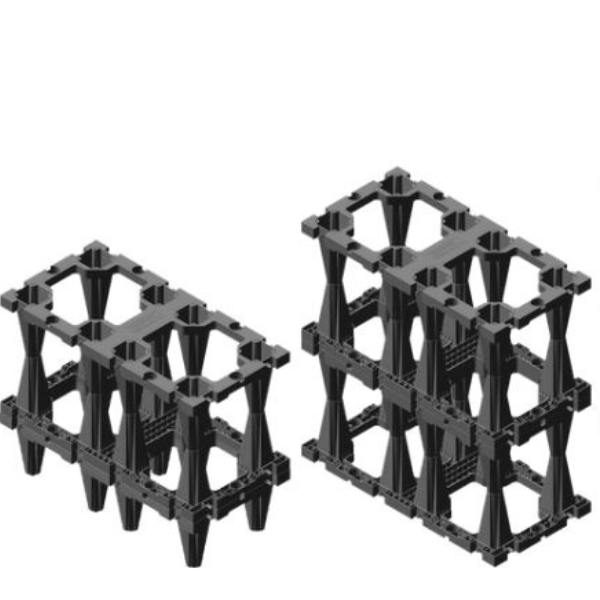

- Based on 800mm x 400mm module over 25 supports/sqm. Provides uniform load distribution for both point loads and UDL loads from traffic and pavement applications.
- Water Storage Capability
- ISO Certified & Green Label Certified
- Biological/Chemical Resistance: Unaffected by mold, algae, chemicals, and bitumen
Contact Estimating KHD Landscaping today to learn more about our Urban Tree Vault solutions and how they can transform your next urban landscaping project.
